Features / Benefits

• 19,500 GVW chassis (*7,018 lb class 5 chassis)
• Aluminum tanks in various capacities. **Diesel & DEF available in 100gal only.
• 50ft hoses with Reelcraft hose reels
• Pneumatic delivery system options with twin in-frame air tanks
• Graco Fire-Ball pneumatic oil and grease pumps
• CTECH tool drawers and bolt bin storage options
• 5gal aluminum bucket storage bin w/ dirty filter storage (option)
• 50 ft air hose reel with Norgren FRL
• Aluminum roll top (option)

• Patented one-piece 10 gauge (3.6mm) side-pack design for rugged, off-road use minimizes weld seams for less cracking and rust
• 12 gauge (2.8mm) tread plate on tops and cargo area for added durability
• Internal stainless steel hinges reduce potential corrosion points
• Double-paneled Galvanneal doors for added strength
• Gas door struts reduce wear-and-tear
• Rounded door corners throughout reduce effect of load on stress points
• Flush door panels with bulb seal gasket and functional full-length drip rail for dryer compartments
• Fully undercoated for rust prevention

Safety and Security Built-In

• Large, flush-mounted, angled, stop-tail-turn lights for better visibility
• Four heavy-duty tie downs for payload security
• Three-point latching system provides secure door closures
• Fender flares add protection to the body at the wheel well
• Rounded door corners throughout reduce effect of load on stress points
• Best-in-class Two-Year Limited Warranty

Productivity Enhanced

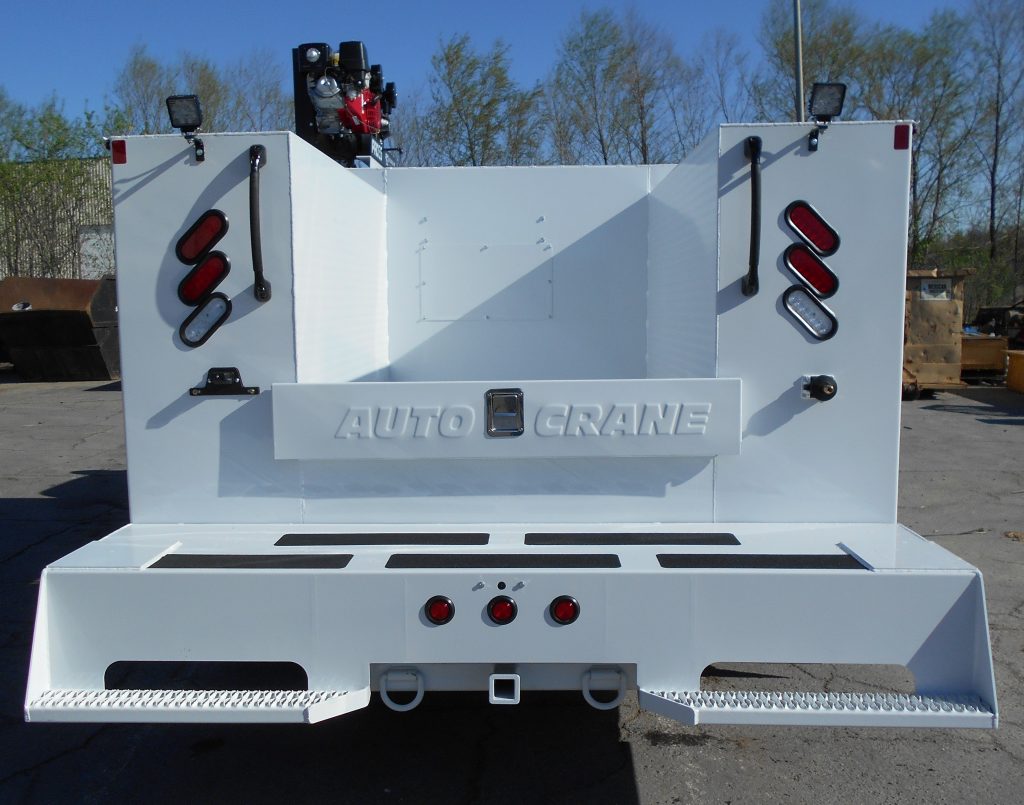

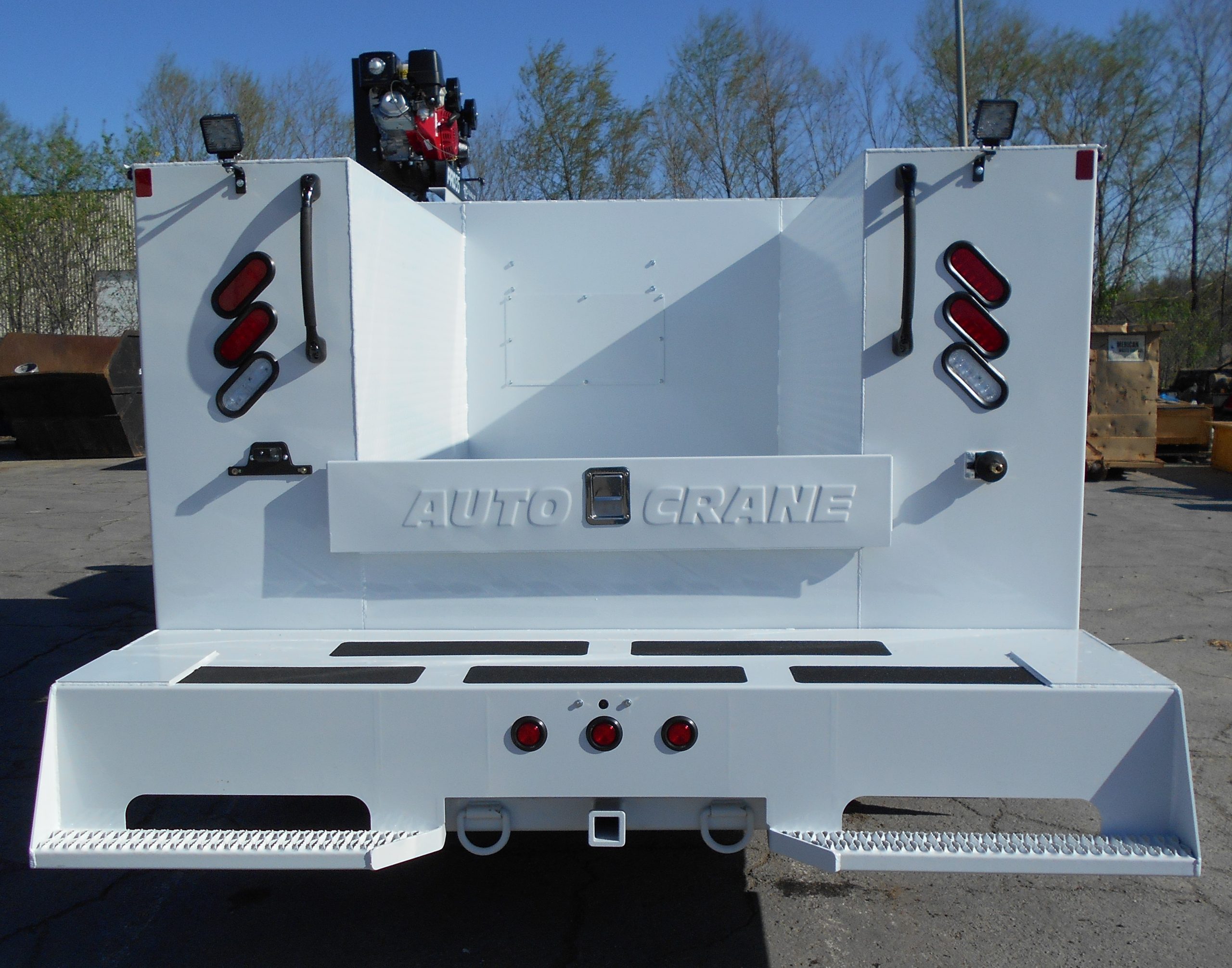

• Double-paneled, slam-able tailgate for one hand ease-of-use
• Complete shelf package to optimize storage needs

Chassis Requirements:

• Class 5 (19,500 GVWR)
• 34″ (864 mm) frame rail width
• Dual rear wheels — 93.75″ (2.38 m) overall width
• Actual chassis requirements should be determined by adding weight of body, crane, accessories, and anticipated cargo
• PTO provision required for some pneumatic delivery system options, please consult your Auto Crane Dealer or Sales Person
