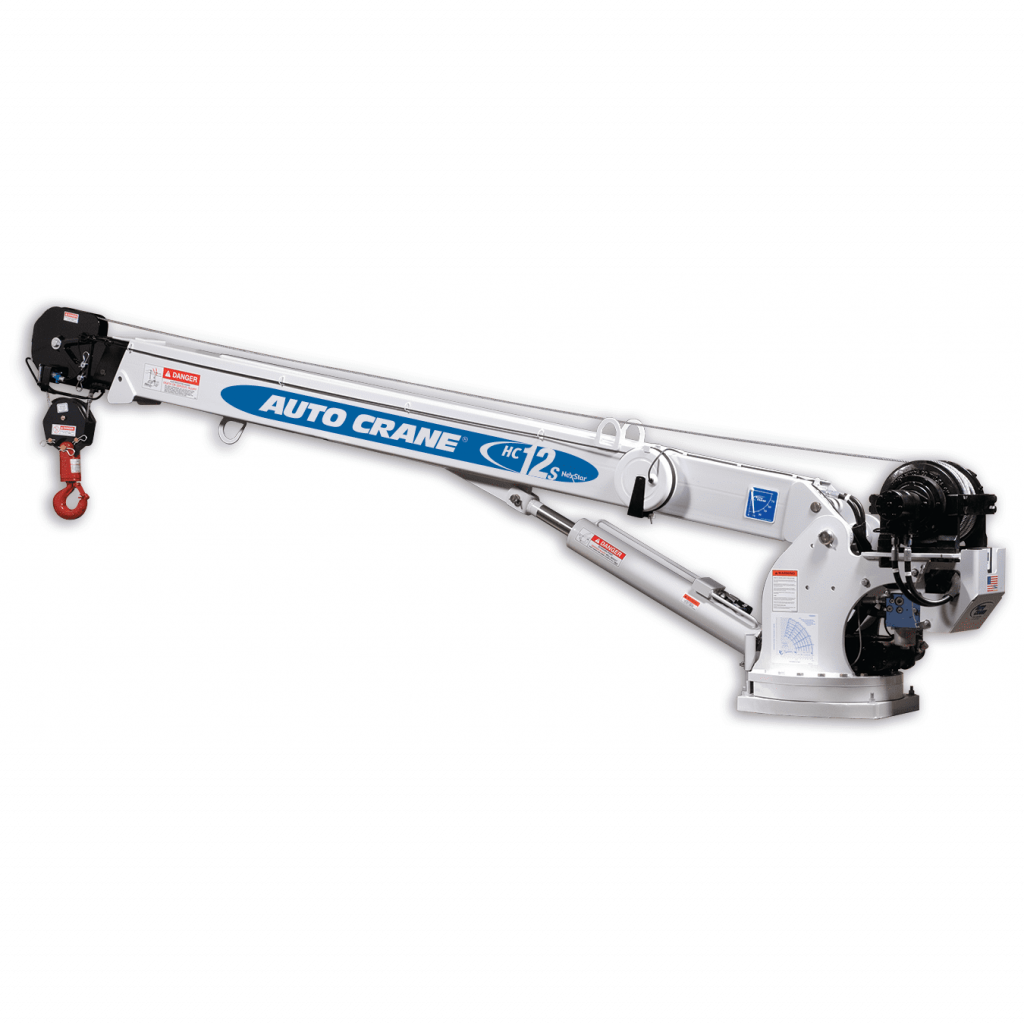

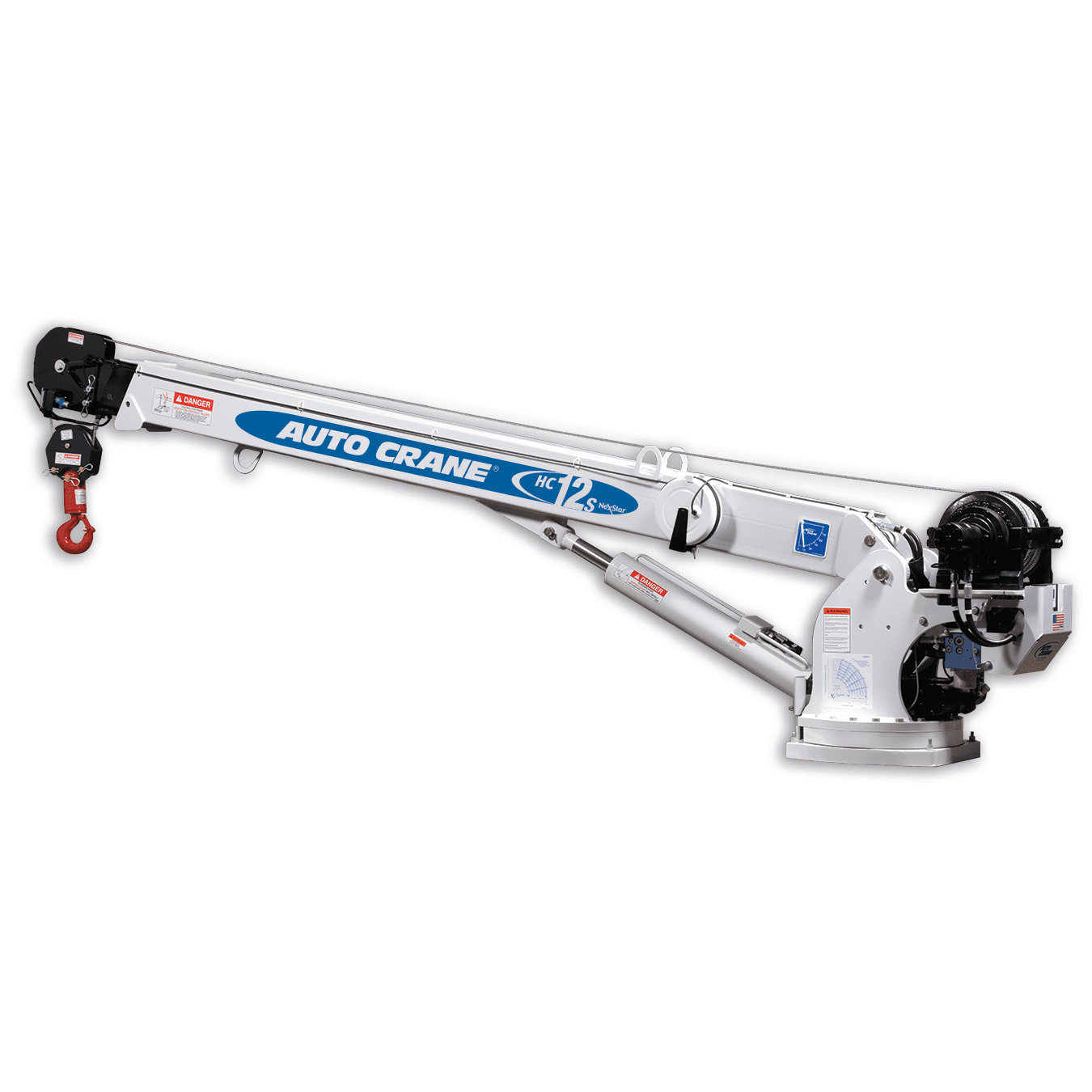

HC-12SReturn to Products Page

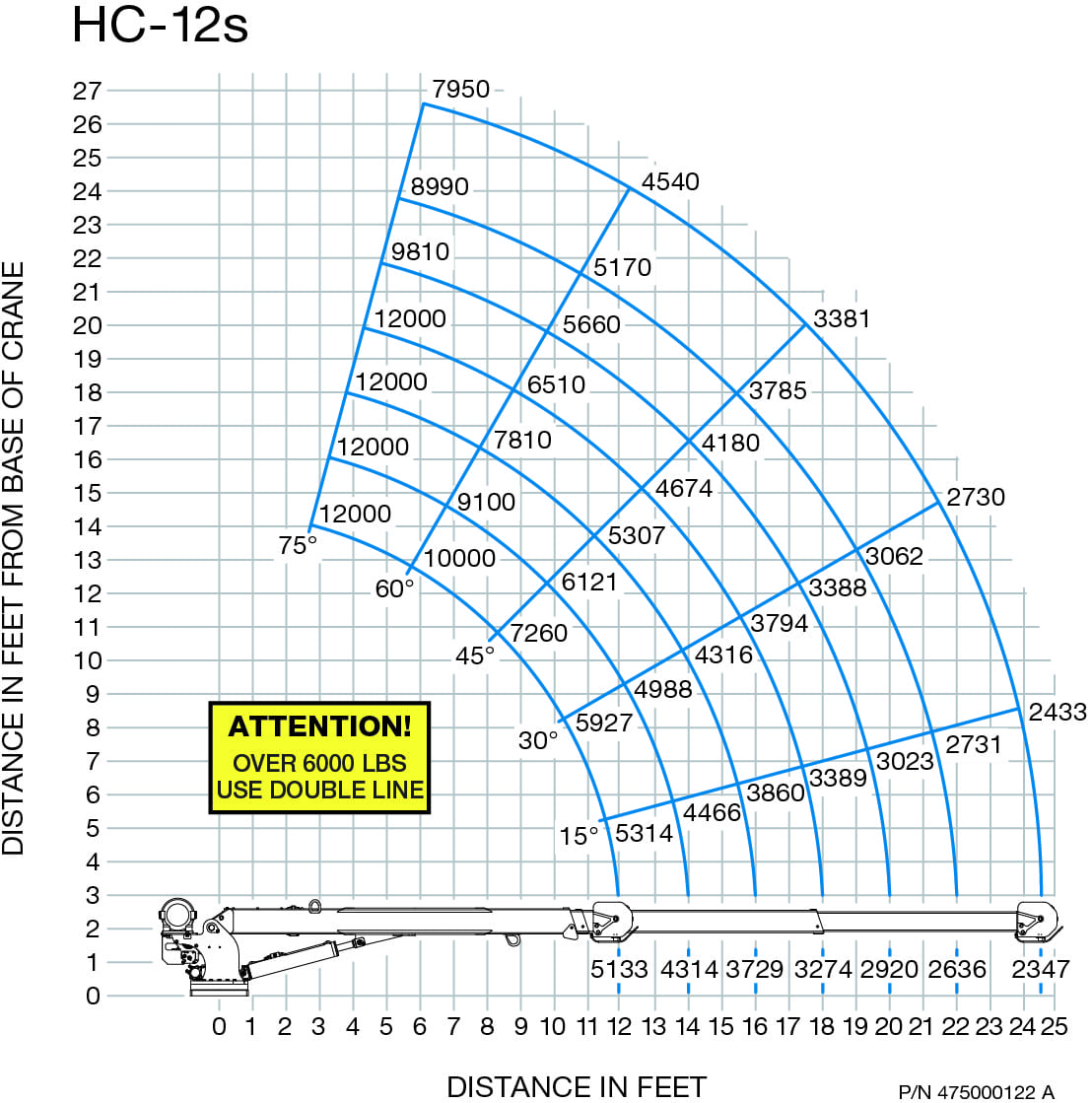

| Capacity | 12,000 lbs (5,443 kg) at 6 ft (1.83 m) | ||
| Rating | 60,000 ft-lb (8.30 t-m) | ||
| Length | 25 ft (7.62 m) fully extended | ||
| Weight | 1,900 lb (862 kg) | ||
| Chassis | Class 6 (26,000 GVWR minimum) | ||
| Body | Titan 60 | ||
| Stowed Boom Length | 14′ 3″ (4.34 m) | ||
| Extended Boom Length | 25′ (7.62 m) | ||
| Width | 2′ 0.5″ (.62 m) | ||
| Height | 2′ 11.5″ (.9 m) | ||
| Base Plate Dimensions | 20.75″ x 20.5″ (0.53 m x 0.52 m) | ||
| Single Line Speed | 60 ft/min (18.3 m/min) | ||
| Boom Down | 13-20 seconds (full stroke of cylinder) | ||
| Boom Retract | 18-24 seconds (full stroke of cylinder) | ||
| Hydraulic Requirements | 10 gpm (38 L/min) at 3,000 psi (207 bar) | ||
| Cable | 120 ft (36.6 m) of 7/16″ (11 mm) aircraft quality cable | ||
| Standards | ANSI B30.5, OSHA 1910.180 | ||
| Warranty | 2 year warranty | ||
| Resources |
HC-12s NexStar Manual |
||
Requirements
- Outriggers:
- Truck must be equipped with 60,000 ft-lb rated outriggers ()
- Chassis:
- 26,000 GVWR minimum chassis requirement. (Does not include bodies or accessories)
- RBM of 900,000 in-lbs minimum
- Engine speed control required for optimum crane installation
Control Options
- NexStar™ 4 wireless remote (tether and docking station included)
