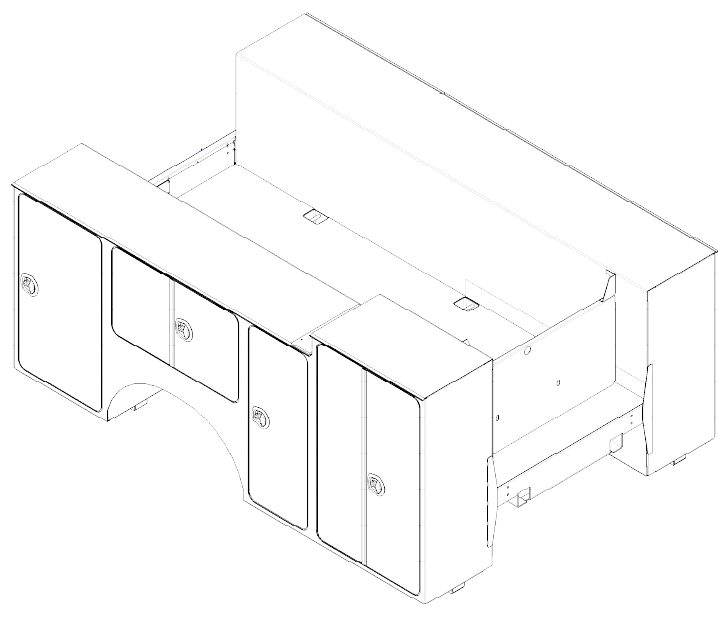

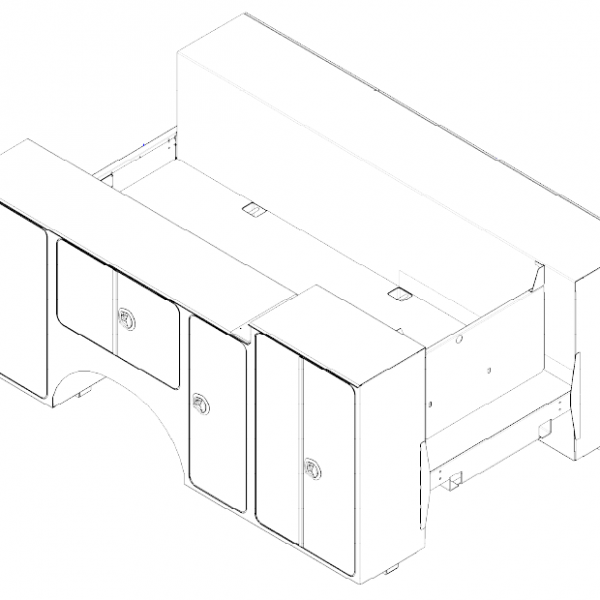

Titan 38 ServiceReturn to Products Page

Body Configurations	9′ (60″ CA) Standard: 11′ (84″ CA) Standard: 121.8 cu/ft (3.45 cu/m) 84″ Tall — 127.2 cu/ft (3.60 cu/m)
Resources	Titan Body Flyer Cabinet Dimensions Table Titan 38 Manual Titan 38 Propane Manual

Patented one-piece 10 gauge (3.6mm) side-pack design for rugged, off-road use minimizes weld seams for less cracking and rust
12 gauge (2.8mm) tread plate on tops and cargo area for added durability
Integral crane box transfers load directly to outriggers reducing stress on the chassis — reinforced up to 38,000 ft lb (5.3 tM)
Internal stainless steel hinges reduce potential corrosion points
Double-paneled Galvanneal doors for added strength
Gas door struts reduce wear-and-tear
Rounded door corners throughout reduce effect of load on stress points
Flush door panels with bulb seal gasket and functional full-length drip rail for dryer compartments
Fully undercoated for rust prevention

Fully stable throughout lifting radius of the crane for maximized crane capacity
Large, flush-mounted, angled, stop-tail-turn lights for better visibility
Four or six heavy-duty tie downs for payload security
Three-point latching system provides secure door closures
Fender flares add protection to the body at the wheel well
Rounded door corners throughout reduce effect of load on stress points
Best-in-class Two-Year Limited Warranty

Class 4 or 5 (11,200 GVWR; 5080 GVM)
34″ (864 mm) frame rail width
Dual rear wheels — 93.75″ (2.38 m) overall width
14,500 lb (6,577 kg) chassis required for cranes in excess of 25,000 ft lb (3.46 tM)
Truck stability will govern the actual approved working loads that will apply at different points of rotation
Actual chassis requirements should be determined by adding weight of body, crane, accessories, and anticipated cargo
