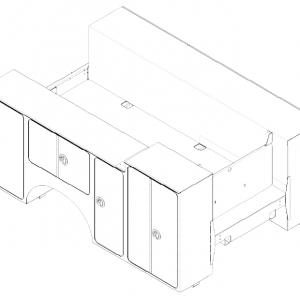

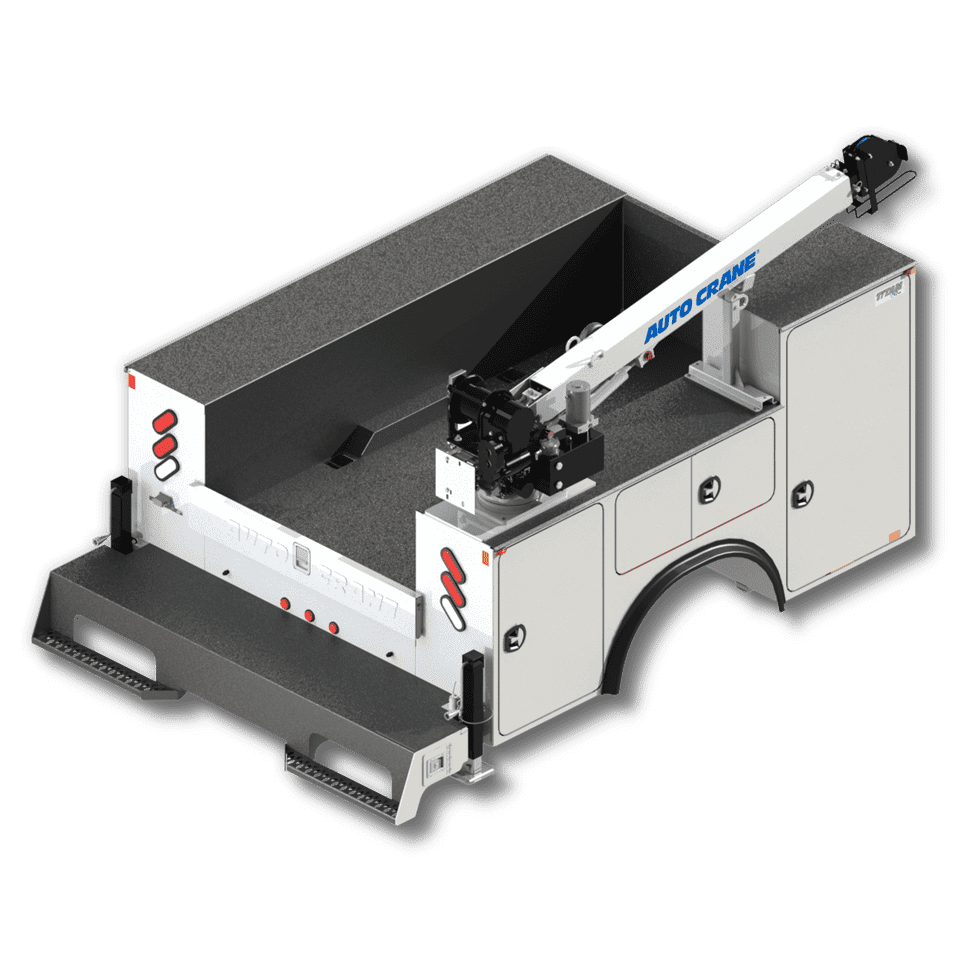

9′ and 11′ Service Bodies for Class 3 Trucks

Compatible with cranes up to the EHC-4 model

Features / Benefits
Heavy-duty performance and extended service life:

• Patented one-piece 10 gauge side-pack design for rugged, off-road use minimizes weld seams for less cracking and rust
• Integral crane box transfers load directly to outriggers reducing stress on the chassis — reinforced up to 16,000 ft-lb (2.21 tM)
• Internal stainless steel hinges reduce potential corrosion points
• Double-paneled A60 Galvanneal doors for added strength
• Gas shock door struts reduce wear-and-tear
• Rounded door corners throughout reduce effect of load on stress points
• Flush door panels with bulb seal gasket and functional full-length drip rail for dryer compartments
• Fully undercoated for rust prevention

Safety and security built in:

• Fully stable throughout lifting radius of the crane for maximized crane capacity
• Large, flush-mounted, angled, stop-tail-turn lights for better visibility
• Four or six heavy-duty tie downs for payload security
• Three-point latching system provides secure door closures
• Fender flairs add protection to the body at the wheel well
• Rounded door corners throughout reduce effect of load on stress points
• Best-in-class Two-Year Limited Warranty

Productivity Enhanced:

• Double-paneled, slam-able tailgate for one hand ease-of-use
• Complete shelf package to optimize storage needs

Chassis Requirements:

• Class 3 – 10,900 GVWR (4,944 kg GVM) minimum
• 34″ (864 mm) frame rail width
• Dual rear wheels — 93.75″ (2.38 m) overall width
• Truck stability will govern the actual approved working loads that will apply at different points of rotation
• Actual chassis requirements should be determined by adding weight of body, crane, accessories, and anticipated cargo
• PTO provision required for some crane & compressor power system options, please consult your Auto Crane Dealer or Sales Person

Note: It is the responsibility of the crane installer to comply with OSHA Truck Crane stability requirements as specified by 29 CFR Part 1910.180 (c) (1)

Options:

• 9ft and 11ft body options available
• Manual outriggers
• 8in step bumper, 12in step bumper, or 20in workbench bumper
• Receiver hitch
• LED strip lighting for compartments
• Flood lights
• Crane boom support
• Master locking system
• Grab handles
• Oxy/acetylene bottle holder

Substructure:

• Interlocking channel frame reduces weight while increasing rigidity
