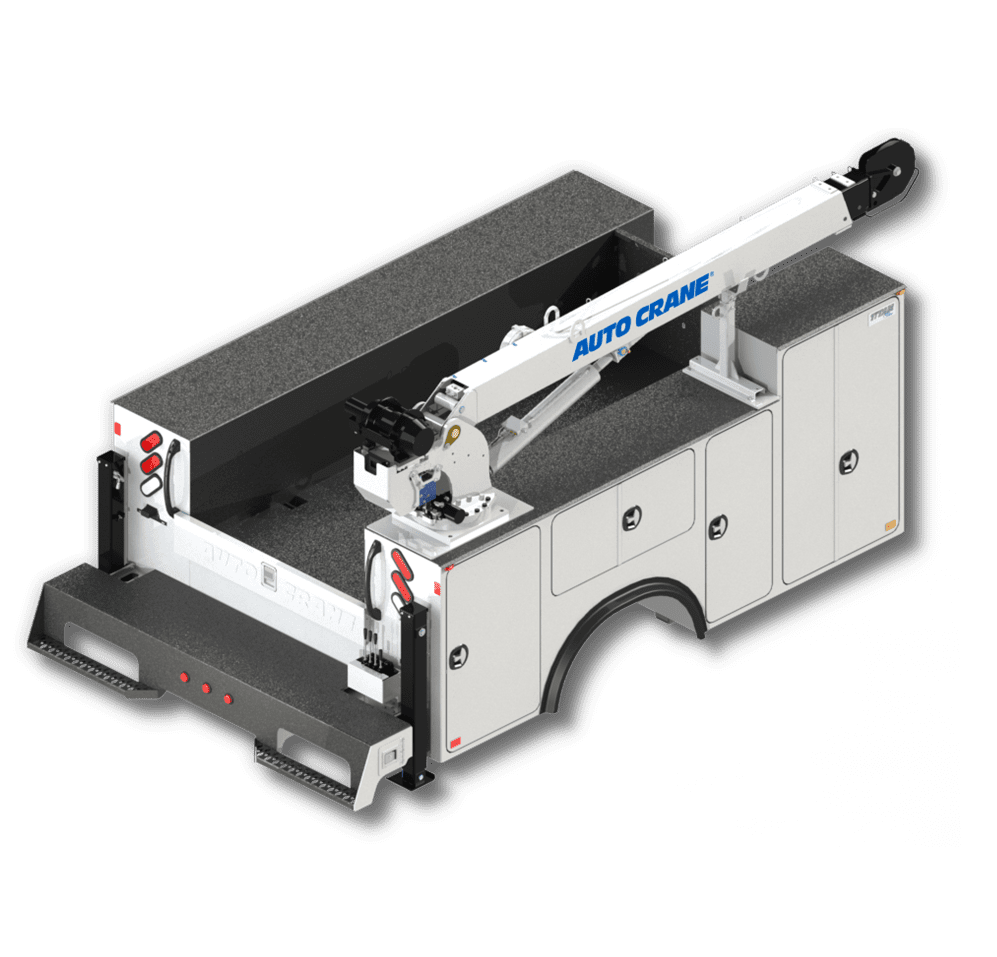

The Titan 38 body has been re-rated to 52,000 ft-lbs off the back and 43,000 ft-lbs off the sides with full stability and 100% capacity around the truck! The competition requires you to step up to a class 6 or add front stabilizers to get this kind of performance that still doesn’t match Auto Crane.

Better yet is the all-steel Titan 38 body with crane, outrigger and compressor package weighs 42 lbs less than the competition’s aluminum-steel hybrid bodies and without sacrificing the strength and durability. We have the weight tickets to prove it!

What’s more is the HC-8x can give you the performance that is typically only available in a class 6 truck. This monster 8,000 lb lift capability with a 30′ boom on a class 5 truck is only available from Auto Crane with the HC-8x crane.

The competition can copy the word “advantage” but there is only one body with the true Titan Advantage.

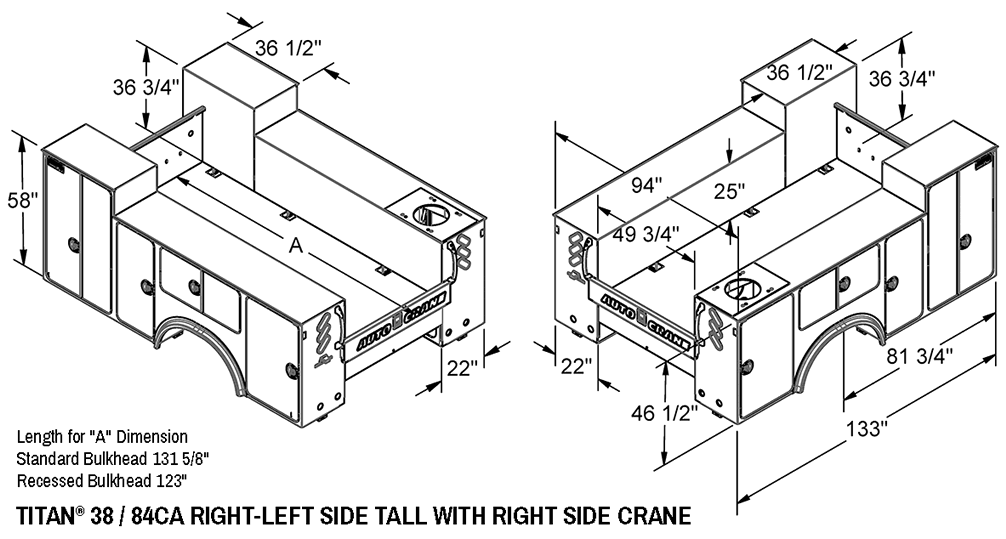

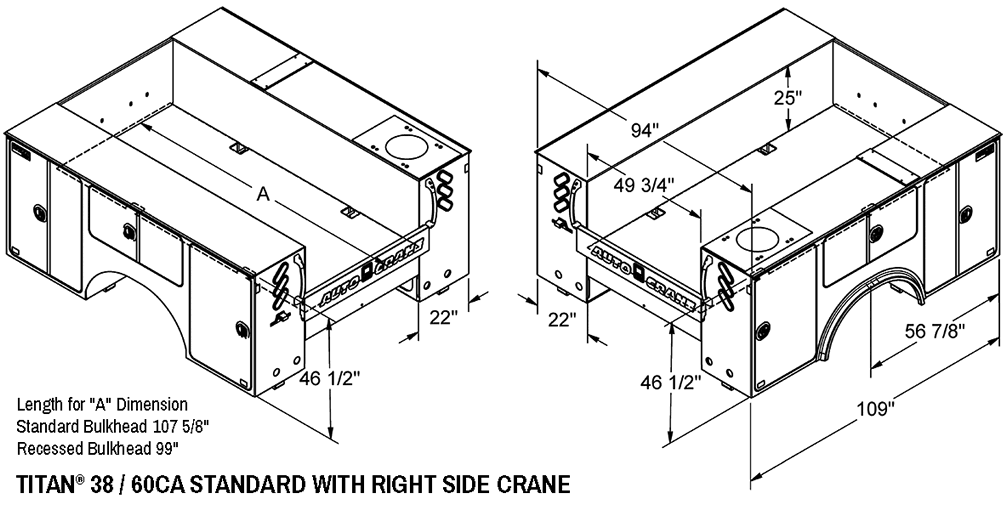

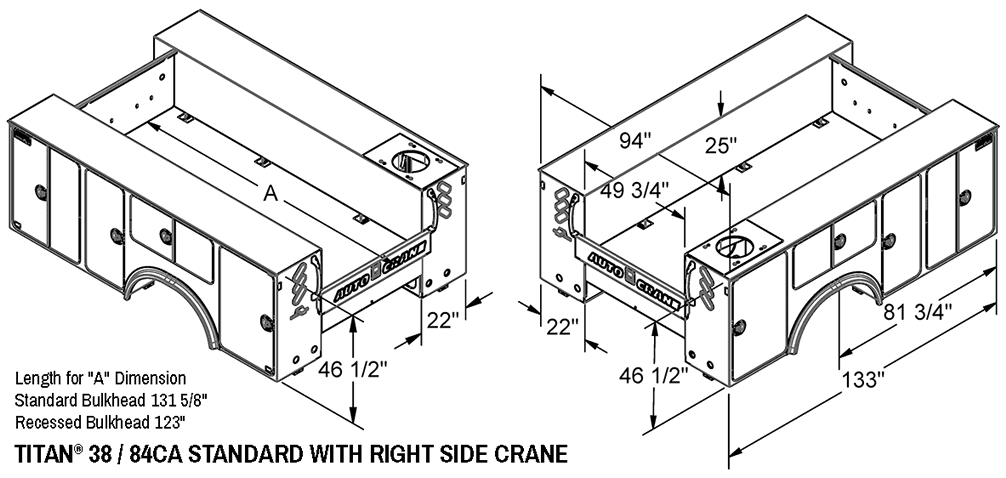

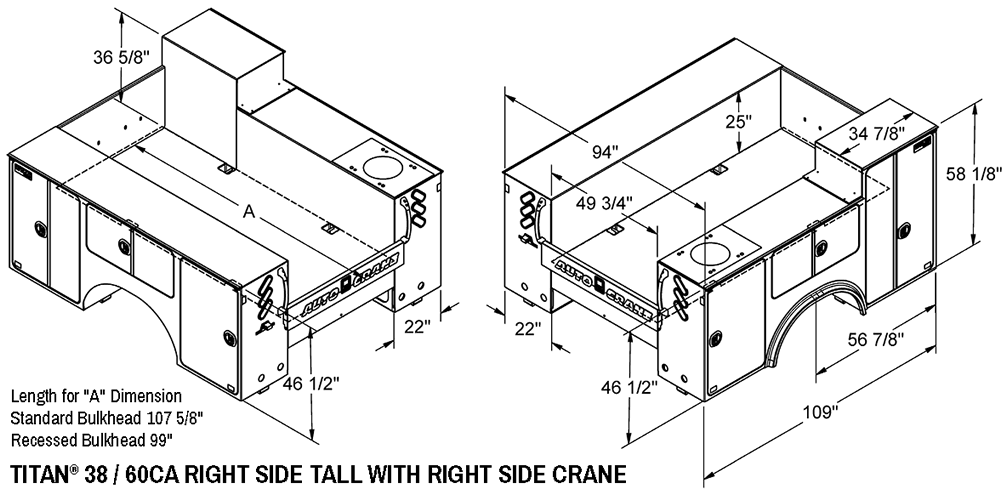

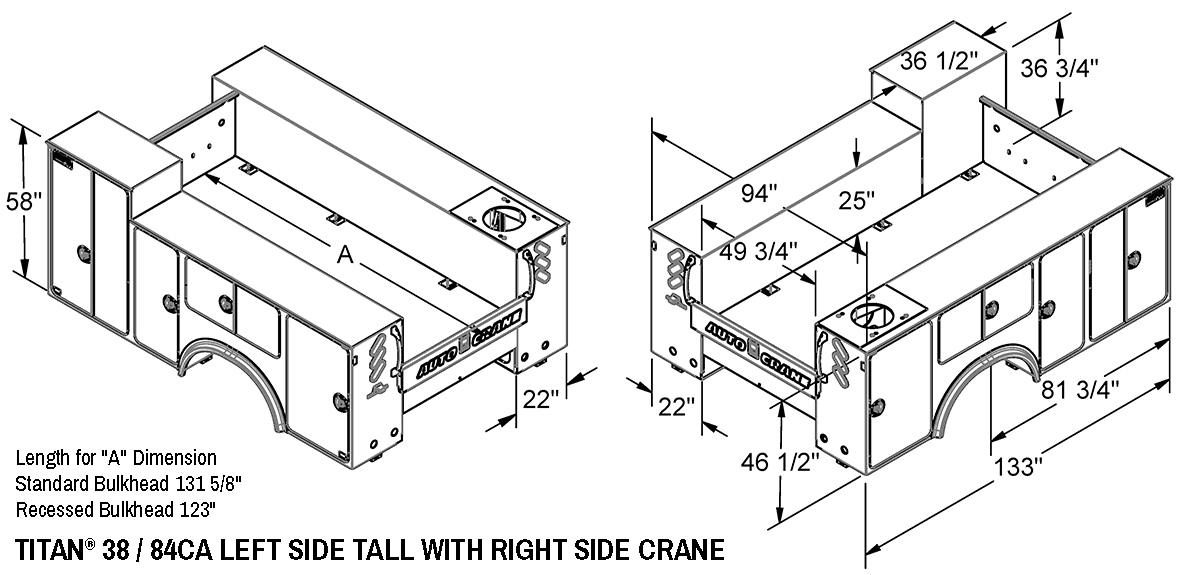

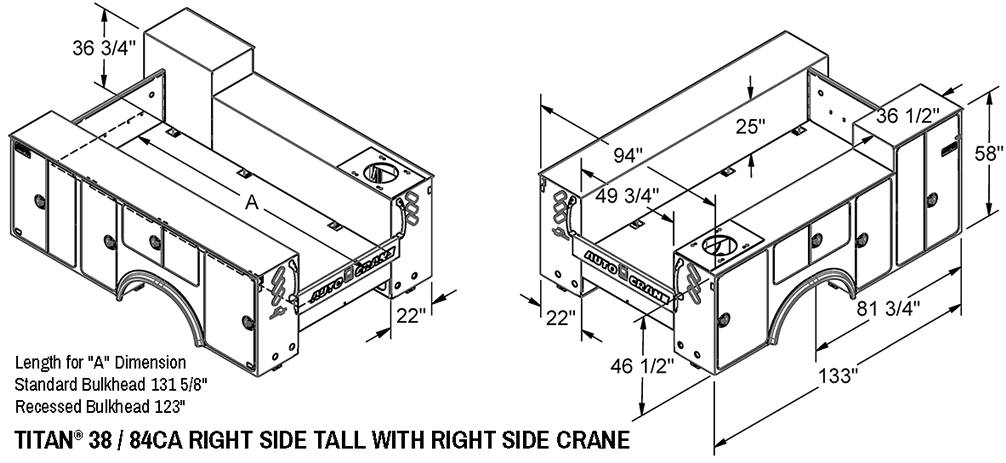

9′ and 11′ Service and Mechanic Bodies for Class 4 and 5 Trucks

Compatible with the HC-8x, HC-8 and smaller model cranes

Features / Benefits
Heavy-duty performance and extended service life:

• Patented one-piece 10 gauge (3.6mm) side-pack design for rugged, off-road use minimizes weld seams for less cracking and rust
• 12 gauge (2.8mm) tread plate on tops and cargo area for added durability
• Integral crane box transfers load directly to outriggers reducing stress on the chassis — reinforced up to 52,000 ft lb (7.19 t-m) off the back and 43,000 ft-lb (5.95 t-m) on the sides (HC-8x and smaller model cranes)
• Internal stainless steel hinges reduce potential corrosion points
• Double-paneled Galvanneal doors for added strength
• Gas door struts reduce wear-and-tear
• Rounded door corners throughout reduce effect of load on stress points
• Flush door panels with bulb seal gasket and functional full-length drip rail for dryer compartments
• Fully undercoated for rust prevention

Safety and security built in:

• Fully stable throughout lifting radius of the crane for maximized crane capacity
• Large, flush-mounted, angled, stop-tail-turn lights for better visibility
• Four or six heavy-duty tie downs for payload security
• Three-point latching system provides secure door closures
• Fender flares add protection to the body at the wheel well
• Rounded door corners throughout reduce effect of load on stress points
• Best-in-class Two-Year Limited Warranty

Productivity enhanced:

• Unobstructed crane compartment maximizes usable cargo space
• Double-paneled, slam-able tailgate for one hand ease-of-use
• Complete shelf package to optimize storage needs

Chassis Requirements:

• Class 4 or 5 (11,200 GVWR – 23,500 GVWR)
• 34″ (864 mm) frame rail width
• Dual rear wheels — 93.75″ (2.38 m) overall width
• 14,500 lbs GVWR chassis required for crane of 25,000 ft-lbs (3.46 tM) or above
• 19,500 lbs GVWR chassis required for crane of 43,000 ft-lbs (6.55 tM) or above
• Truck stability will govern the actual approved working loads that will apply at different points of rotation
• Actual chassis requirements should be determined by adding weight of body, crane, accessories, and anticipated cargo
• PTO provision required for some crane & compressor power system options, please consult your Auto Crane Dealer or Sales Person

Note: It is the responsibility of the crane installer to comply with OSHA Truck Crane stability requirements as specified by 29 CFR Part 1910.180 (c) (1)

Options:

• Integrated wheel chock holders
• Manual or hydraulic outriggers
• 12in heavy-duty bumper
• 20in workbench storage bumper
• Receiver hitch
• LED strip lighting for compartments
• Flood lights
• Crane boom support
• Individual drawer units
• Drop-well for front compartment
• Slide-out tool tray
• Adjustable shelving
• Lockable sliding tops
• Master locking system
• Grab handles
• Oxy/acetylene bottle holder

Substructure:

• Interlocking channel frame reduces weight while increasing rigidity
